ADG5209FBCPZ-RL7
Analog Devices Inc.
Analog Devices Inc.

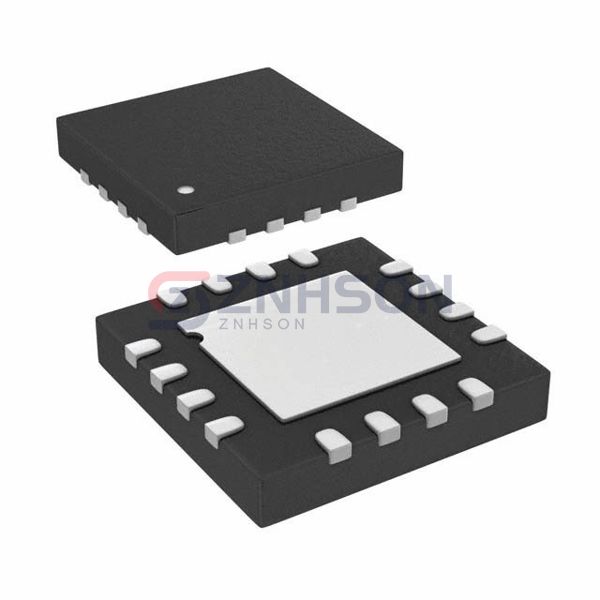

IC SWITCH SP4T DUAL 16LFCSP
$11.68
Available to order
Reference Price (USD)
1,500+
$5.74033
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the ADG5209FBCPZ-RL7 - Analog Devices Inc.'s most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The ADG5209FBCPZ-RL7 enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 160Ohm
- Channel-to-Channel Matching (ΔRon): 3.5Ohm
- Voltage - Supply, Single (V+): 9V ~ 40V
- Voltage - Supply, Dual (V±): ±9V ~ 22V
- Switch Time (Ton, Toff) (Max): 140ns, 185ns
- -3db Bandwidth: 130MHz
- Charge Injection: 0.4pC
- Channel Capacitance (CS(off), CD(off)): 4pF, 8pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP-WQ (4x4)
