ADG5234BCPZ-RL7
Analog Devices Inc.
Analog Devices Inc.

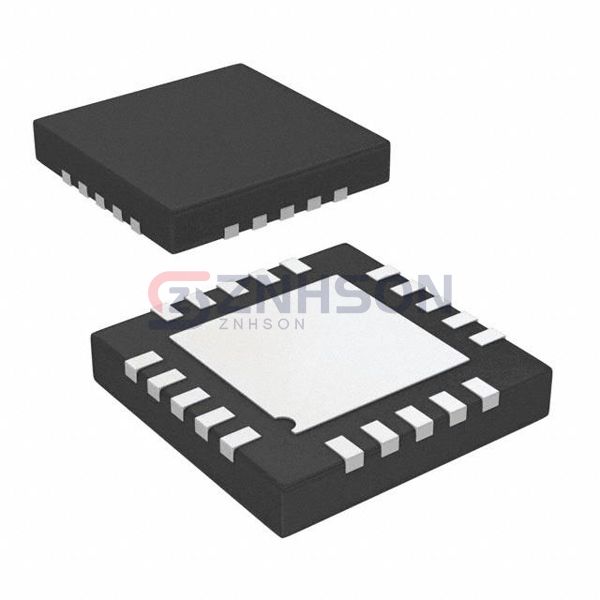

IC SW ANLG QUAD SPDT 20LFCSP
$8.43
Available to order
Reference Price (USD)
1,500+
$4.29704
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG5234BCPZ-RL7 from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG5234BCPZ-RL7 is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 160Ohm
- Channel-to-Channel Matching (ΔRon): 3.5Ohm
- Voltage - Supply, Single (V+): 9V ~ 40V
- Voltage - Supply, Dual (V±): ±9V ~ 22V
- Switch Time (Ton, Toff) (Max): 200ns, 95ns
- -3db Bandwidth: 370MHz
- Charge Injection: 0.7pC
- Channel Capacitance (CS(off), CD(off)): 4.5pF, 10pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -80dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad, CSP
- Supplier Device Package: 20-LFCSP (4x4)
