ADG709BRUZ-REEL
Analog Devices Inc.
Analog Devices Inc.
IC MULTIPLEXER DUAL 4X1 16TSSOP
$4.47
Available to order
Reference Price (USD)
1+
$4.47000
500+
$4.4253
1000+
$4.3806
1500+
$4.3359
2000+
$4.2912
2500+
$4.2465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG709BRUZ-REEL from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG709BRUZ-REEL is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 4.5Ohm
- Channel-to-Channel Matching (ΔRon): 400mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): ±2.5V
- Switch Time (Ton, Toff) (Max): 14ns, 8ns (Typ)
- -3db Bandwidth: 55MHz
- Charge Injection: 3pC
- Channel Capacitance (CS(off), CD(off)): 13pF, 42pF
- Current - Leakage (IS(off)) (Max): 10pA (Typ)
- Crosstalk: -80dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
Related Products
onsemi
MC74LVXT4052DR2G
Analog Devices Inc./Maxim Integrated
DG408CJ+
Texas Instruments
SN74HC4066PWR
Analog Devices Inc./Maxim Integrated
MAX314EUE+
Analog Devices Inc./Maxim Integrated
MAX4639ESE+
Texas Instruments
CD4053BM
Analog Devices Inc.

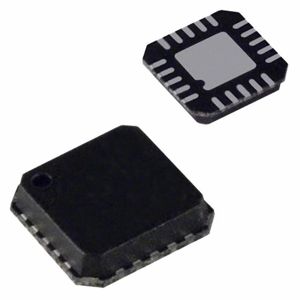

ADG784BCPZ-REEL7
Vishay Siliconix
DG418DY-T1-E3
Analog Devices Inc./Maxim Integrated

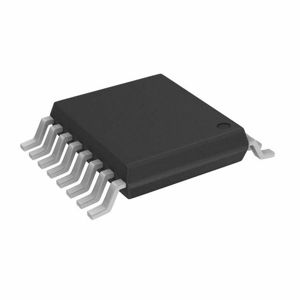

MAX4592CUE+T
