ADG713BR-REEL
Analog Devices Inc.
Analog Devices Inc.

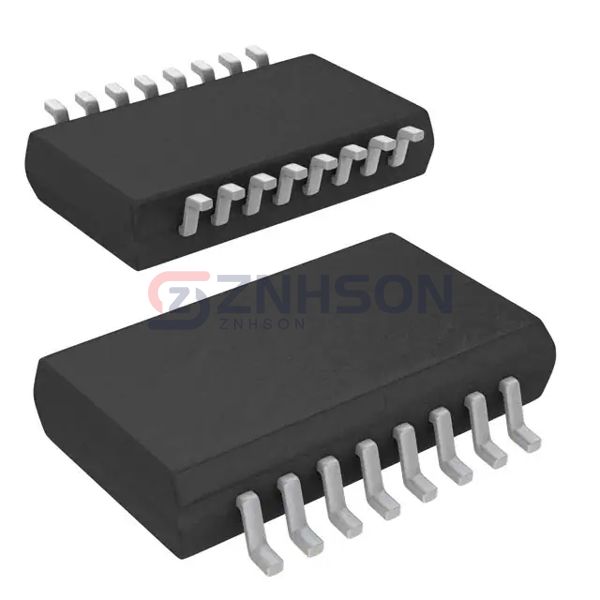

IC SWITCH QUAD SPST 16SOIC
$1.47
Available to order
Reference Price (USD)
1+
$1.47000
500+
$1.4553
1000+
$1.4406
1500+
$1.4259
2000+
$1.4112
2500+
$1.3965
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc.'s ADG713BR-REEL, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The ADG713BR-REEL meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPST - NO/NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 4Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 11ns, 6ns (Typ)
- -3db Bandwidth: 200MHz
- Charge Injection: 3pC
- Channel Capacitance (CS(off), CD(off)): 10pF, 10pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -90dB @ 10MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
