ADG786BCPZ
Analog Devices Inc.
Analog Devices Inc.

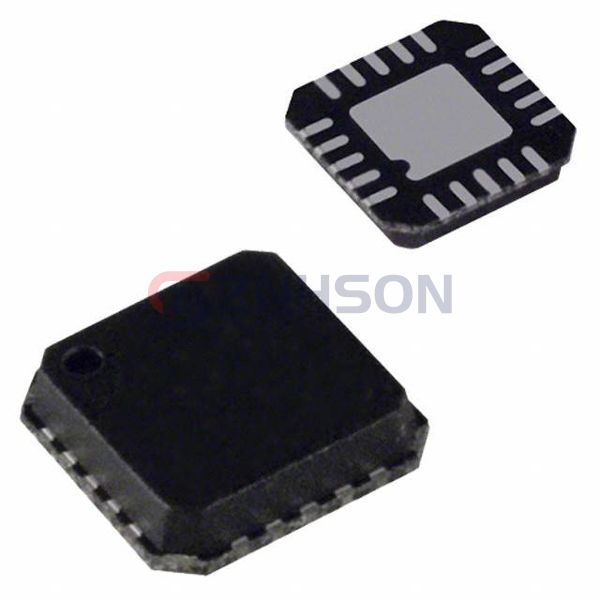

IC SWITCH TRIPLE SPDT 20LFCSP
$4.44
Available to order
Reference Price (USD)
1+
$3.85000
10+
$3.46100
490+
$2.69063
980+
$2.41431
1,470+
$2.03616
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the ADG786BCPZ - Analog Devices Inc.'s most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The ADG786BCPZ enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 3
- On-State Resistance (Max): 4.5Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): ±2.5V
- Switch Time (Ton, Toff) (Max): 21ns, 10ns (Typ)
- -3db Bandwidth: 160MHz
- Charge Injection: 5pC
- Channel Capacitance (CS(off), CD(off)): 11pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -80dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad, CSP
- Supplier Device Package: 20-LFCSP (4x4)
