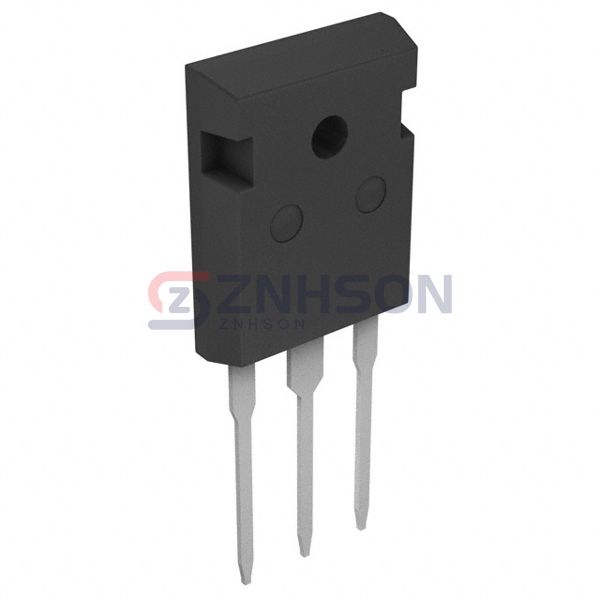

APT13F120B
Microchip Technology
Microchip Technology
MOSFET N-CH 1200V 14A TO247
$11.01
Available to order
Reference Price (USD)
1+
$11.26000
10+
$10.24100
100+
$8.70470
500+
$7.42458
1,000+
$7.16856
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT13F120B by Microchip Technology is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the APT13F120B is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.4Ohm @ 7A, 10V
- Vgs(th) (Max) @ Id: 5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 145 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 4765 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 625W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247 [B]
- Package / Case: TO-247-3
