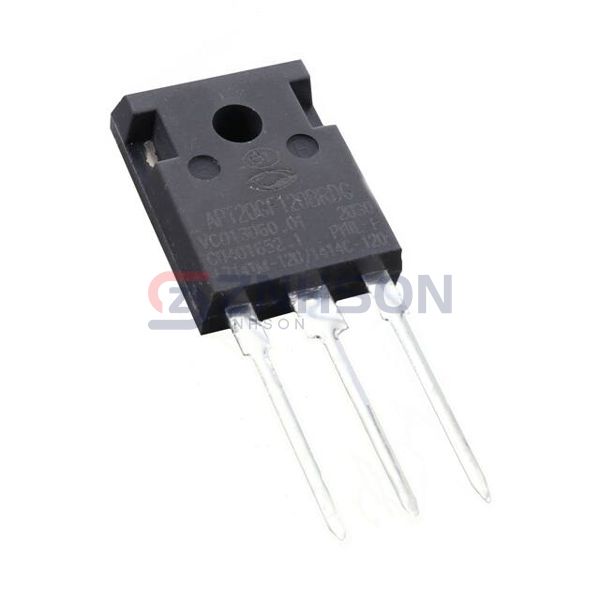

APT20GF120BRDG
Microchip Technology
Microchip Technology
IGBT NPT COMBI 1200V 20A TO-247
$7.16
Available to order
Reference Price (USD)
1+
$7.16000
500+
$7.0884
1000+
$7.0168
1500+
$6.9452
2000+
$6.8736
2500+
$6.802
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT20GF120BRDG Single IGBT transistor by Microchip Technology is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The APT20GF120BRDG ensures precise power control and long-term stability. With Microchip Technology's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate APT20GF120BRDG into your projects for superior results.
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 32 A
- Current - Collector Pulsed (Icm): 64 A
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 15A
- Power - Max: 200 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 140 nC
- Td (on/off) @ 25°C: 17ns, 93ns
- Test Condition: 792V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 85 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
