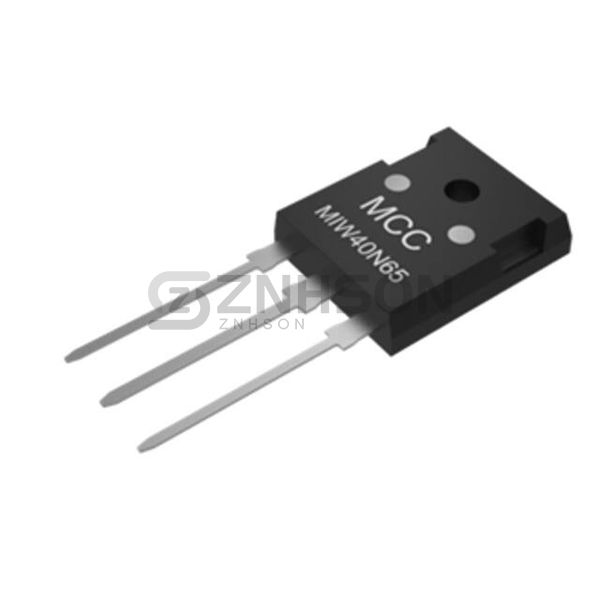

MIW40N65-BP
Micro Commercial Co
Micro Commercial Co
IGBT 650V 40A TO-247
$4.35
Available to order
Reference Price (USD)
1+
$4.35000
500+
$4.3065
1000+
$4.263
1500+
$4.2195
2000+
$4.176
2500+
$4.1325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the MIW40N65-BP Single IGBT transistor from Micro Commercial Co. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the MIW40N65-BP ensures precision and reliability. Micro Commercial Co's cutting-edge technology guarantees a component that meets the highest industry standards. Choose MIW40N65-BP for efficient and durable power solutions.
Specifications
- Product Status: Last Time Buy
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
- Power - Max: 280 W
- Switching Energy: 3.3mJ (on), 1.4mJ (off)
- Input Type: Standard
- Gate Charge: 165 nC
- Td (on/off) @ 25°C: 62ns/265ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 41 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
