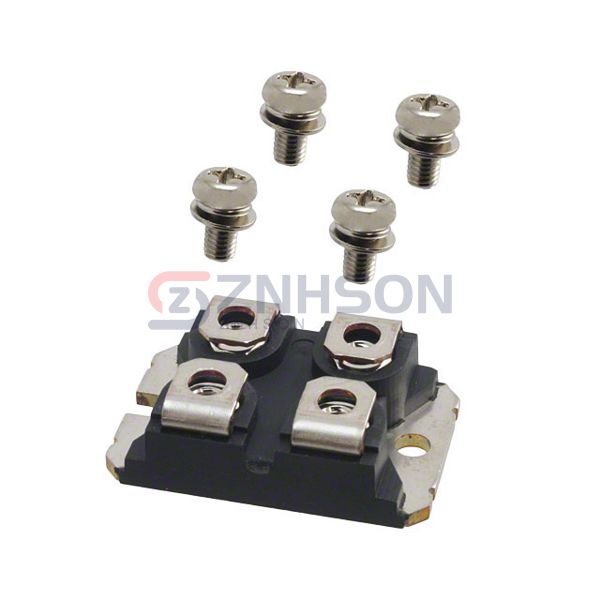

APT20M120JCU2
Microchip Technology
Microchip Technology
MOSFET N-CH 1200V 20A SOT227
$40.53
Available to order
Reference Price (USD)
1+
$40.53440
500+
$40.129056
1000+
$39.723712
1500+
$39.318368
2000+
$38.913024
2500+
$38.50768
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT20M120JCU2 from Microchip Technology sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Microchip Technology's APT20M120JCU2 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 672mOhm @ 14A, 10V
- Vgs(th) (Max) @ Id: 5V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs: 300 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 7736 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 543W (Tc)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SOT-227
- Package / Case: SOT-227-4, miniBLOC
