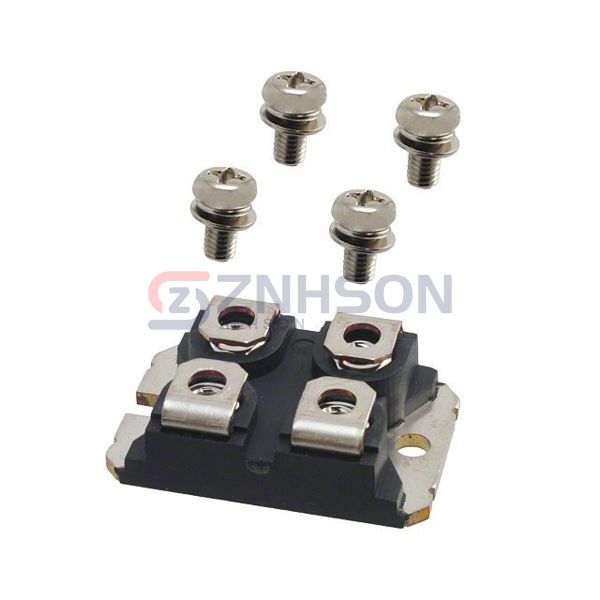

APT2X101S20J
Microchip Technology
Microchip Technology
DIODE MODULE 200V 120A ISOTOP
$28.32
Available to order
Reference Price (USD)
1+
$27.34000
10+
$25.28600
25+
$23.23560
100+
$21.59540
250+
$19.81860
500+
$18.86184
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the APT2X101S20J diode rectifier array by Microchip Technology, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Microchip Technology delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 2 Independent
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io) (per Diode): 120A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 100 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 70 ns
- Current - Reverse Leakage @ Vr: 2 mA @ 200 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: ISOTOP
- Supplier Device Package: ISOTOP®
