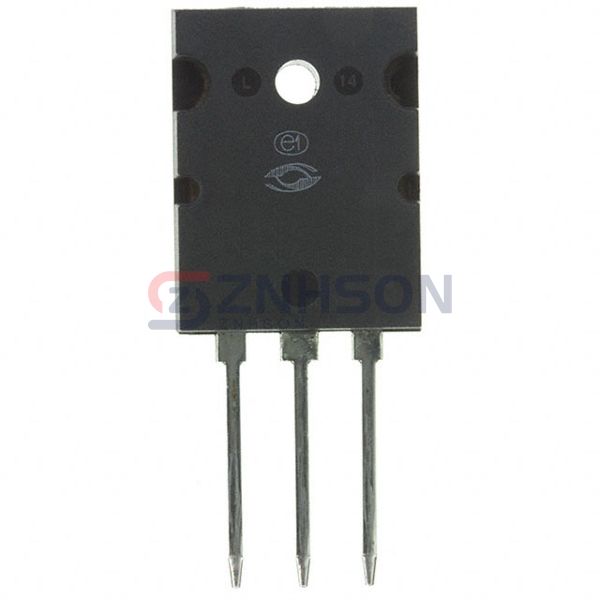

APT50GT120LRDQ2G
Microchip Technology
Microchip Technology
IGBT 1200V 106A 694W TO264
$19.16
Available to order
Reference Price (USD)
29+
$17.09897
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT50GT120LRDQ2G by Microchip Technology is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the APT50GT120LRDQ2G delivers robust performance. Microchip Technology's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate APT50GT120LRDQ2G into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 106 A
- Current - Collector Pulsed (Icm): 150 A
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 50A
- Power - Max: 694 W
- Switching Energy: 2585µJ (on), 1910µJ (off)
- Input Type: Standard
- Gate Charge: 240 nC
- Td (on/off) @ 25°C: 23ns/215ns
- Test Condition: 800V, 50A, 1Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264 [L]
