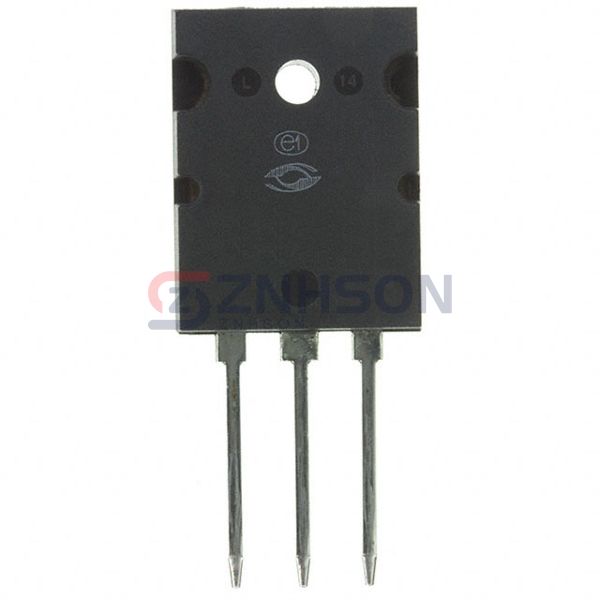

APT70GR120L
Microchip Technology
Microchip Technology
IGBT 1200V 160A 961W TO264
$13.22
Available to order
Reference Price (USD)
40+
$12.40325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the APT70GR120L Single IGBT transistor by Microchip Technology, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the APT70GR120L ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the APT70GR120L for unmatched power control.
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 160 A
- Current - Collector Pulsed (Icm): 280 A
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 70A
- Power - Max: 961 W
- Switching Energy: 3.82mJ (on), 2.58mJ (off)
- Input Type: Standard
- Gate Charge: 544 nC
- Td (on/off) @ 25°C: 33ns/278ns
- Test Condition: 600V, 70A, 4.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264
