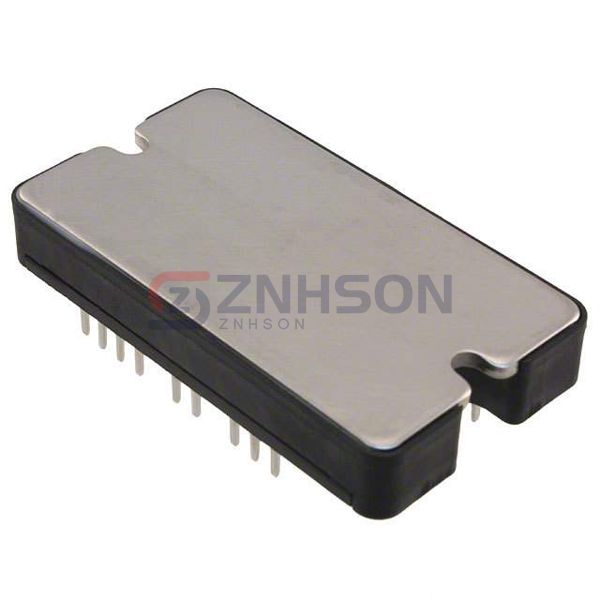

APTGL60DDA120T3G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 80A 280W SP3
$75.75
Available to order
Reference Price (USD)
100+
$43.68150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGL60DDA120T3G from Microchip Technology exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the APTGL60DDA120T3G in megawatt-level wind turbine converters. With Microchip Technology's proven track record, the APTGL60DDA120T3G represents the future of power semiconductor modules.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Dual Boost Chopper
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Power - Max: 280 W
- Vce(on) (Max) @ Vge, Ic: 2.25V @ 15V, 50A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 2.77 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP3
- Supplier Device Package: SP3
