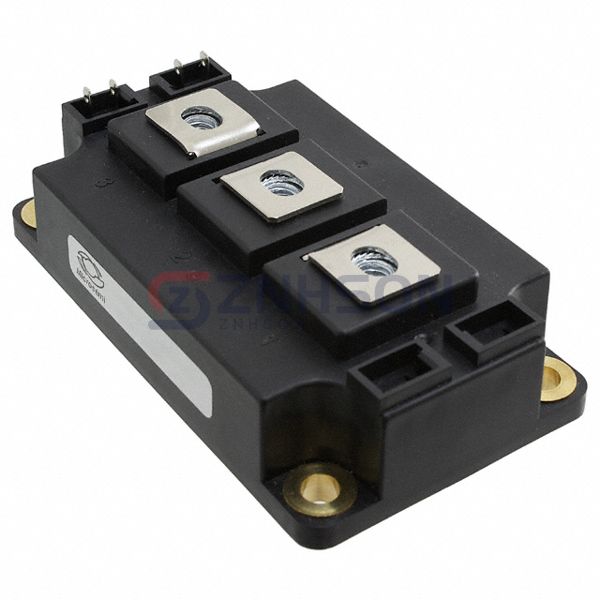

APTGT400A60D3G
Microchip Technology
Microchip Technology
IGBT MODULE 600V 500A 1250W D3
$241.42
Available to order
Reference Price (USD)
1+
$148.33000
10+
$141.16800
25+
$136.05360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGT400A60D3G from Microchip Technology exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the APTGT400A60D3G in megawatt-level wind turbine converters. With Microchip Technology's proven track record, the APTGT400A60D3G represents the future of power semiconductor modules.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 500 A
- Power - Max: 1250 W
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 400A
- Current - Collector Cutoff (Max): 500 µA
- Input Capacitance (Cies) @ Vce: 24 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: D-3 Module
- Supplier Device Package: D3
