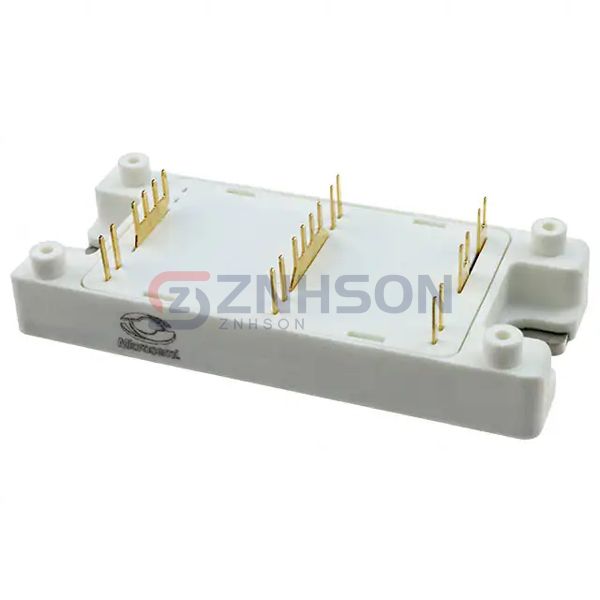

APTGT75DA120TG
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 110A 357W SP4
$90.52
Available to order
Reference Price (USD)
100+
$46.83560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the APTGT75DA120TG IGBT module by Microchip Technology sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The APTGT75DA120TG finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. Microchip Technology continues to lead the IGBT module revolution with innovations like the APTGT75DA120TG.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 110 A
- Power - Max: 357 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 75A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 5.34 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP4
- Supplier Device Package: SP4
