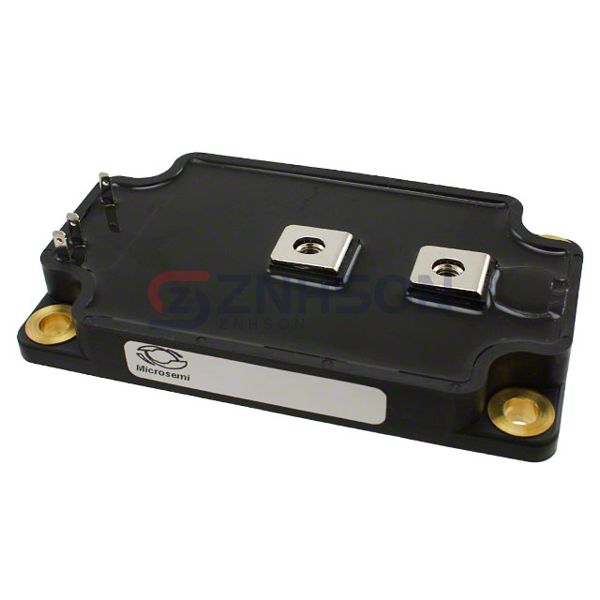

APTM20UM03FAG
Microchip Technology
Microchip Technology
MOSFET N-CH 200V 580A SP6
$357.75
Available to order
Reference Price (USD)
100+
$188.10640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the APTM20UM03FAG by Microchip Technology, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the APTM20UM03FAG is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 200 V
- Current - Continuous Drain (Id) @ 25°C: 580A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.6mOhm @ 290A, 10V
- Vgs(th) (Max) @ Id: 5V @ 15mA
- Gate Charge (Qg) (Max) @ Vgs: 840 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 43300 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2270W (Tc)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SP6
- Package / Case: SP6
