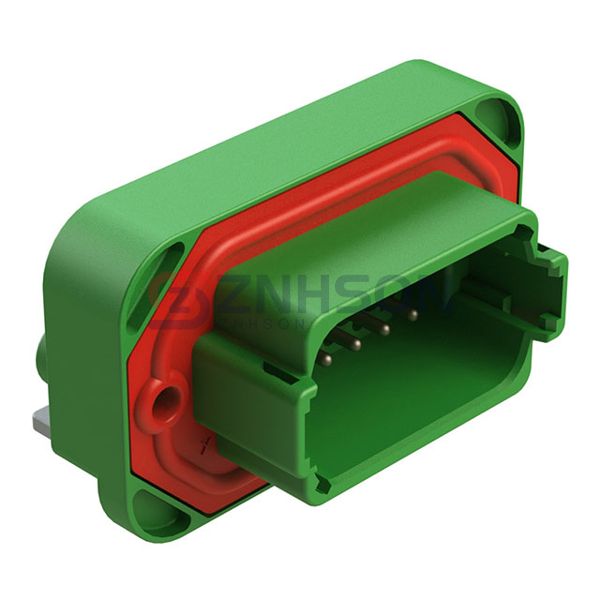

AT13-12PC-BM04
Amphenol Sine Systems Corp
Amphenol Sine Systems Corp
CONN HEADER R/A 12POS
$12.56
Available to order
Reference Price (USD)
20+
$15.90000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the AT13-12PC-BM04 rectangular connector header from Amphenol Sine Systems Corp. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the AT13-12PC-BM04 meets the highest industry standards. Amphenol Sine Systems Corp provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.358" (9.10mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: -
- Insulation Height: 1.390" (35.30mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Guide, Mating Flange, Mounting Flange, Potting Wall
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: IP67
- Material Flammability Rating: -
- Insulation Color: Green
- Current Rating (Amps): 13A
- Voltage Rating: 250V
