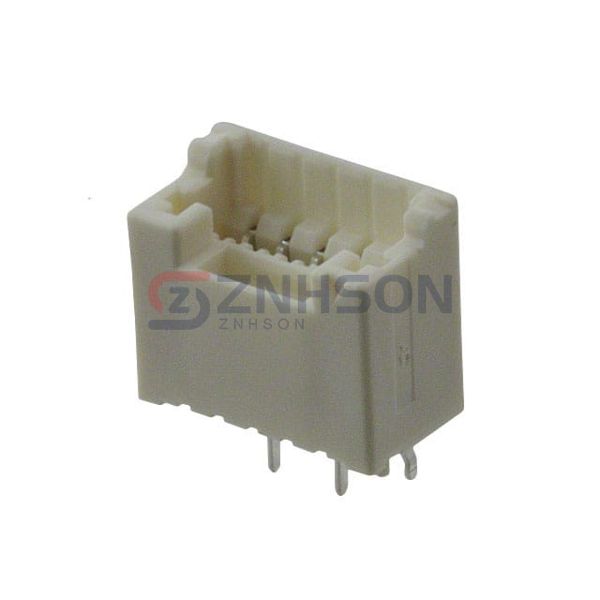

B05B-ZESK-1D(T)(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER VERT 5POS 1.5MM
$0.62
Available to order
Reference Price (USD)
1+
$0.61000
10+
$0.56800
100+
$0.43540
500+
$0.37864
1,408+
$0.31237
5,632+
$0.27451
11,264+
$0.25558
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the B05B-ZESK-1D(T)(LF)(SN) rectangular connector header from JST Sales America Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the B05B-ZESK-1D(T)(LF)(SN) adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. JST Sales America Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Outer Shroud Contact
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 100V
Related Products
Samtec Inc.
TFC-120-22-F-D
TE Connectivity AMP Connectors
3-644615-4
Samtec Inc.
TMM-140-01-F-D-SM
Sullins Connector Solutions
PEC27SABN
Samtec Inc.
TFC-113-22-L-D-A
Samtec Inc.
TSM-108-03-T-DV-TR
Samtec Inc.
TMM-113-04-T-S
Molex
0010897661
JAE Electronics

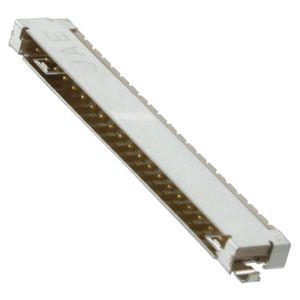

FI-SE20P-HFE
