FI-SE20P-HFE
JAE Electronics
JAE Electronics
CONN HEADER SMD R/A 20POS 1.25MM
$5.54
Available to order
Reference Price (USD)
1+
$4.93000
10+
$4.72800
100+
$3.94000
500+
$3.34900
1,000+
$2.85650
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FI-SE20P-HFE by JAE Electronics is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the FI-SE20P-HFE supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. JAE Electronics ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.083" (2.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin or Tin-Alloy
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Shielded, Solder Retention
- Operating Temperature: -40°C ~ 80°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 200V
Related Products
Sullins Connector Solutions
PEC19SBEN
Samtec Inc.
MMT-105-02-S-SH-K
Samtec Inc.
TSM-110-01-SS-DV-A
TE Connectivity AMP Connectors
1-1744037-2
TE Connectivity AMP Connectors
2-178313-2
Preci-Dip
894-80-102-20-001101
Amphenol ICC (FCI)
68000-409HLF
Samtec Inc.

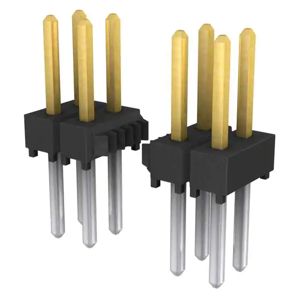

TSW-108-08-S-D
