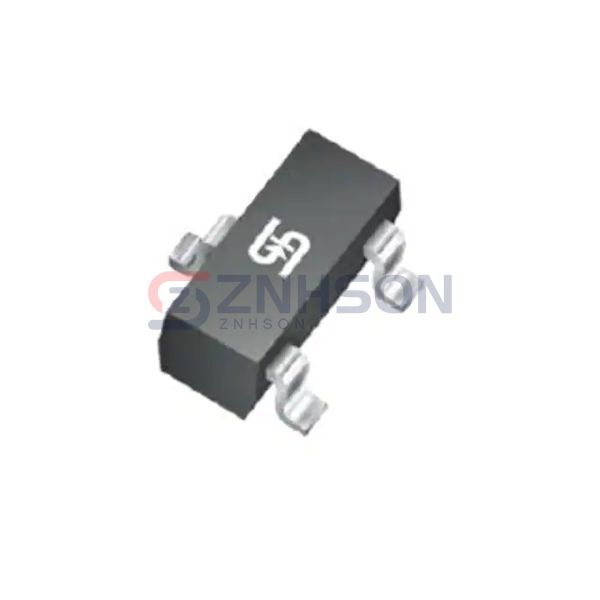

BAS70-05 RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY GP 70V 70MA SOT23
$0.05
Available to order
Reference Price (USD)
3,000+
$0.04973
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the BAS70-05 RFG diode rectifier array by Taiwan Semiconductor Corporation, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Taiwan Semiconductor Corporation delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 70 V
- Current - Average Rectified (Io) (per Diode): 70mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 15 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 50 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
Related Products
Vishay General Semiconductor - Diodes Division
VS-43CTQ100STRLHM3
STMicroelectronics
STTH200L04TV1
Panjit International Inc.
UF2004FCT_T0_00001
Yangzhou Yangjie Electronic Technology Co.,Ltd
BAV199-F2-0000HF
GeneSiC Semiconductor
MURTA50040R
SMC Diode Solutions
SDUR1060CT
Panjit International Inc.

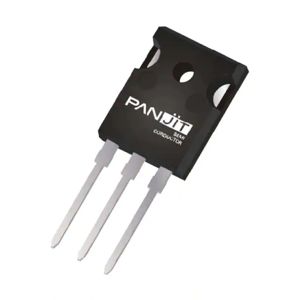

PSDH3060CCL1_T0_00001
