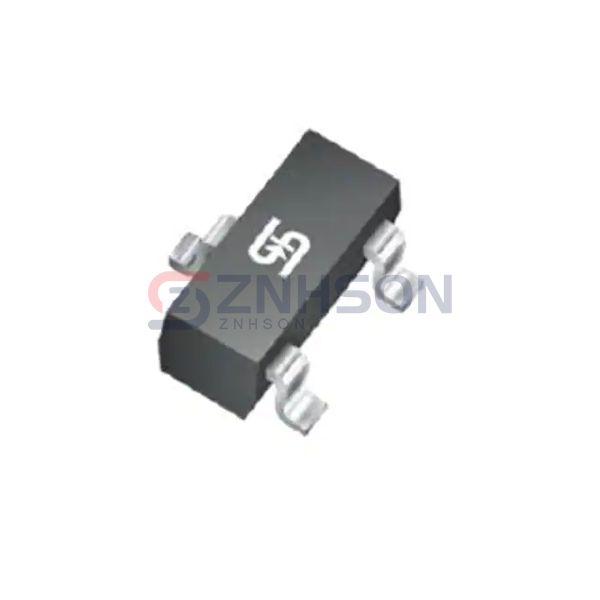

BAT54 RFG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 30V 200MA SOT23
$0.27
Available to order
Reference Price (USD)
3,000+
$0.03672
6,000+
$0.03312
15,000+
$0.02880
30,000+
$0.02592
75,000+
$0.02304
150,000+
$0.02016
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the BAT54 RFG single rectifier diode by Taiwan Semiconductor Corporation, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The BAT54 RFG is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Taiwan Semiconductor Corporation's BAT54 RFG for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Capacitance @ Vr, F: 10pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
- Operating Temperature - Junction: -55°C ~ 125°C
