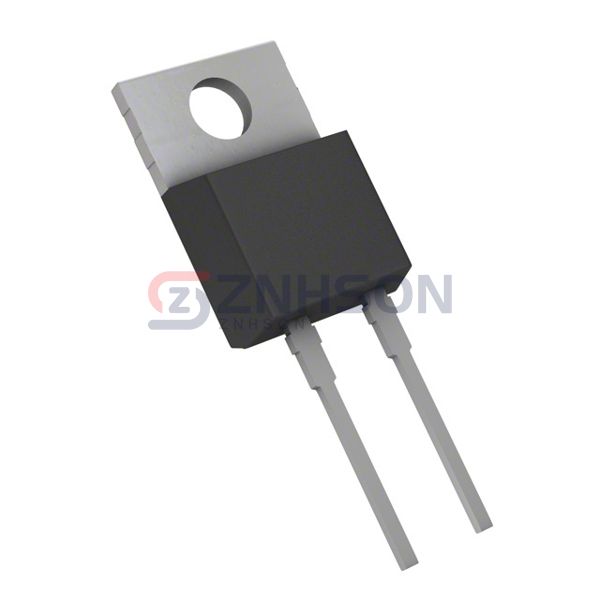

ST1560
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 60V TO220AC
$0.96
Available to order
Reference Price (USD)
1+
$0.88000
50+
$0.68060
100+
$0.59280
500+
$0.43912
1,000+
$0.35130
2,500+
$0.31836
5,000+
$0.30738
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ST1560 by SMC Diode Solutions is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the ST1560 ensures long-term reliability even in harsh operating conditions. Trust SMC Diode Solutions for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): -
- Voltage - Forward (Vf) (Max) @ If: 700 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 1.2 mA @ 60 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: TO-220-2
- Supplier Device Package: TO-220AC
- Operating Temperature - Junction: -55°C ~ 150°C
