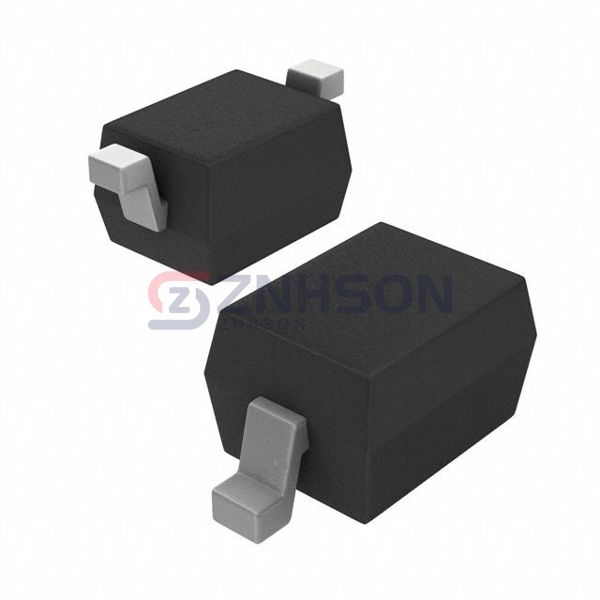

BAT54WSQ-7-F
Diodes Incorporated
Diodes Incorporated
DIODE SCHOTTKY 30V 100MA SOD323
$0.29
Available to order
Reference Price (USD)
3,000+
$0.05000
6,000+
$0.04400
15,000+
$0.03800
30,000+
$0.03600
75,000+
$0.03400
150,000+
$0.03200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT54WSQ-7-F from Diodes Incorporated is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Diodes Incorporated's BAT54WSQ-7-F for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 100mA
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Capacitance @ Vr, F: 10pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: -65°C ~ 150°C
Related Products
onsemi
BAT54WT1G
Taiwan Semiconductor Corporation
ESH2BA
Microchip Technology
1N5189/TR
Panjit International Inc.
SBA130CS-AU_R1_000A1
Vishay General Semiconductor - Diodes Division
VS-ETU3006SHM3
Taiwan Semiconductor Corporation
HS5A R7G
Panjit International Inc.
SV560L_R2_00001
STMicroelectronics

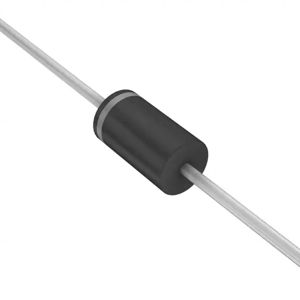

STTH5L06
Vishay General Semiconductor - Diodes Division

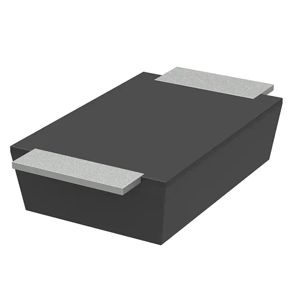

VSS8D2M12-M3/H

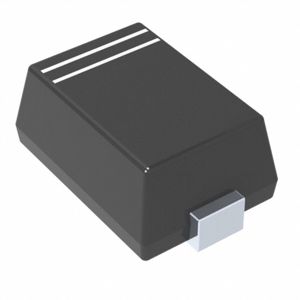

Rohm Semiconductor
