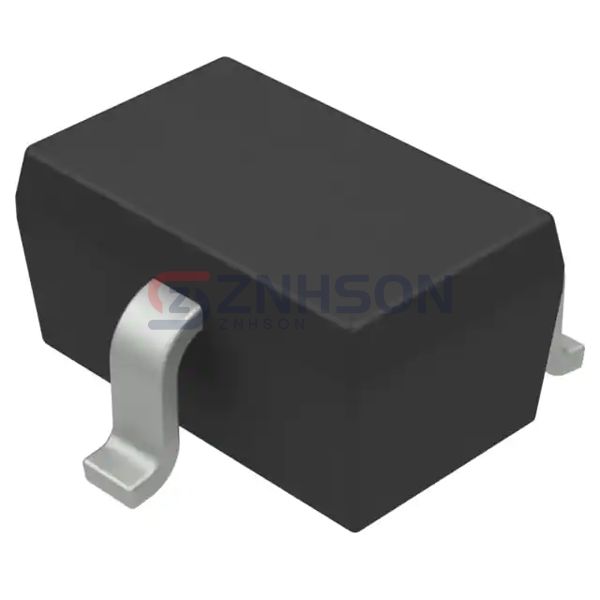

BAT854SWF
Nexperia USA Inc.
Nexperia USA Inc.
DIODE ARRAY SCHOTTKY 40V SOT323
$0.46
Available to order
Reference Price (USD)
10,000+
$0.05600
30,000+
$0.05250
50,000+
$0.04900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the high-performance BAT854SWF from Nexperia USA Inc., a premium diode rectifier array designed for efficient power conversion in demanding applications. As part of the Discrete Semiconductor Products category, this diode array ensures reliable rectification with low forward voltage drop and high surge current capability. Ideal for power supplies, motor controls, and inverters, the BAT854SWF delivers exceptional durability and thermal performance. Whether you're designing industrial equipment or automotive electronics, trust Nexperia USA Inc.'s cutting-edge technology for superior efficiency and longevity.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 100 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 nA @ 25 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
Related Products
SMC Diode Solutions
MBRF2045CTU
Vishay General Semiconductor - Diodes Division
BAT54C-G3-18
Taiwan Semiconductor Corporation
MBR40200PTH
Panjit International Inc.
SD640CS_L2_00001
onsemi
NTSV20U100CTG
SMC Diode Solutions

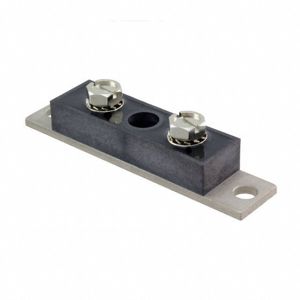

201CNQ045
onsemi
M1MA141WAT1G
Panjit International Inc.

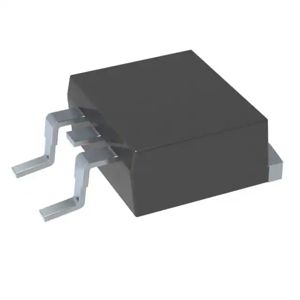

MBR1090DC_R2_00001
