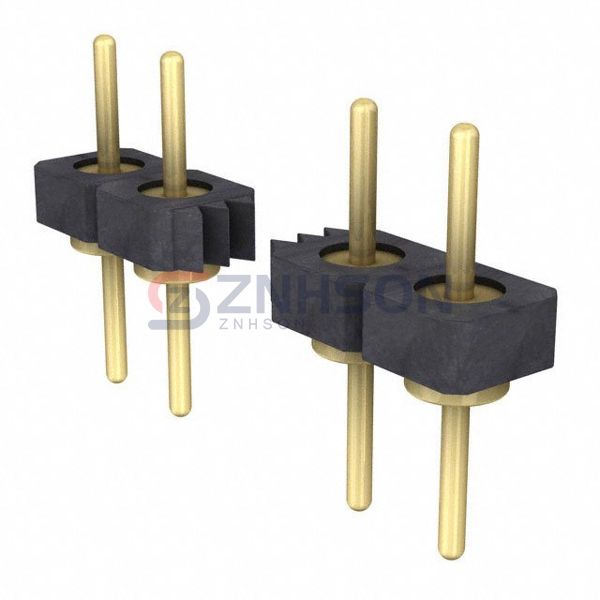

BBL-112-G-E
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 12POS 2.54MM
$5.47
Available to order
Reference Price (USD)
1+
$4.42000
10+
$4.24400
25+
$3.89080
50+
$3.71380
100+
$3.53700
250+
$3.09488
500+
$3.00646
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the BBL-112-G-E rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the BBL-112-G-E ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.300" (7.62mm)
- Insulation Height: 0.070" (1.78mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Nickel
- Contact Material: -
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
