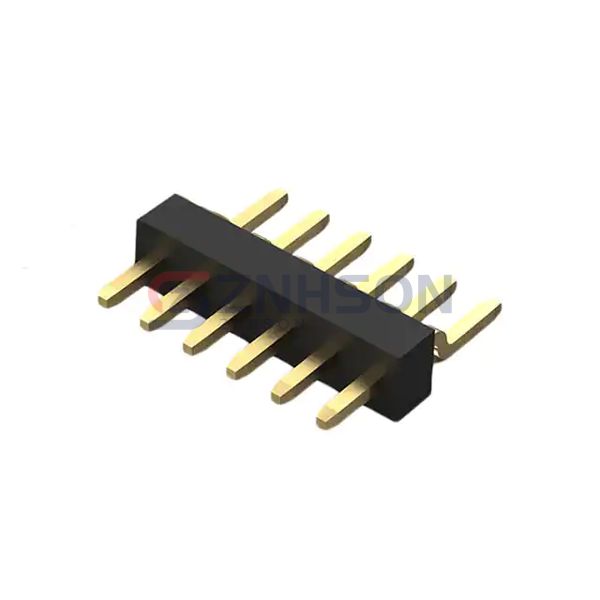

BC034-06-A-V-0150-L-C
GCT
GCT
6POS 1.0MM PITCH HEADER, SIL, SM
$1.57
Available to order
Reference Price (USD)
1+
$1.57000
500+
$1.5543
1000+
$1.5386
1500+
$1.5229
2000+
$1.5072
2500+
$1.4915
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the BC034-06-A-V-0150-L-C rectangular connector header from GCT. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the BC034-06-A-V-0150-L-C is perfect for automotive, industrial, and consumer electronics. GCT ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.059" (1.50mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
EHT-110-01-F-D
Samtec Inc.
HTSW-108-14-G-S
Samtec Inc.
FTS-106-01-F-S
Samtec Inc.
IPL1-110-02-L-SH-K
Samtec Inc.

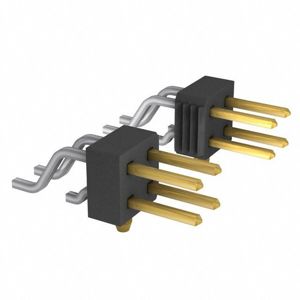

TSM-108-01-L-DH-K-TR
Samtec Inc.

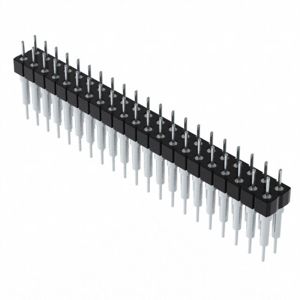

BBD-121-T-B
Preci-Dip
800-80-043-66-001101
TE Connectivity AMP Connectors

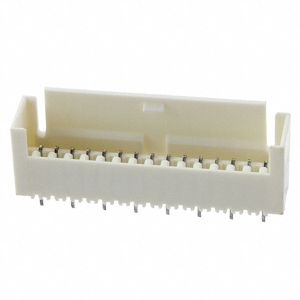

1-1971838-5
Samtec Inc.

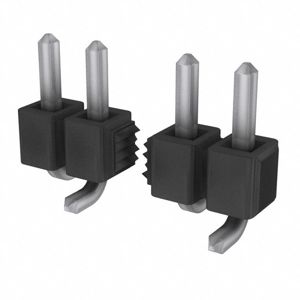

TSM-110-04-TM-SV-P
