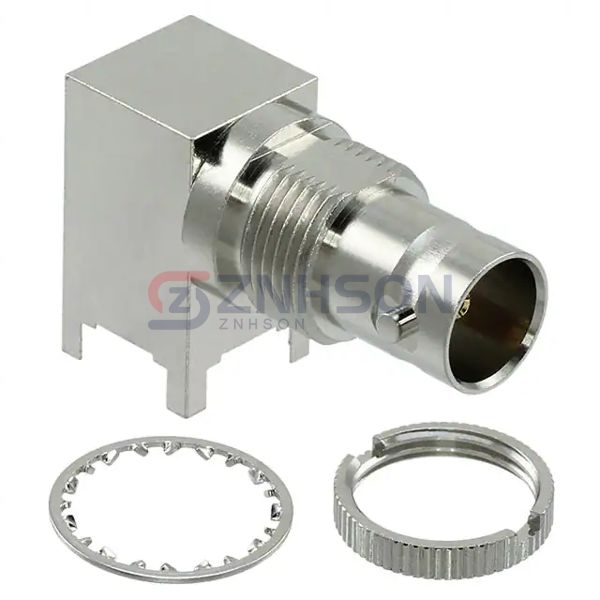

BNC7T-J-P-HN-RA-BH1
Samtec Inc.
Samtec Inc.
CONN BNC JACK R/A 75 OHM PCB
$20.83
Available to order
Reference Price (USD)
1+
$15.44000
10+
$14.04000
25+
$13.68920
50+
$12.63600
100+
$11.93400
250+
$10.88100
500+
$10.17900
1,000+
$9.33660
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Samtec Inc.'s BNC7T-J-P-HN-RA-BH1 represents the cutting edge of Coaxial Connectors (RF) technology, engineered for precision connectivity in RF and microwave systems. This connector series features innovative contact design that maintains stable electrical performance through thousands of mating cycles. Our RF coaxial connectors are characterized by their weather-resistant construction, making them suitable for both indoor and outdoor installations. Key technical advantages include VSWR <1.25, operating temperature range -55 C to +125 C, and multiple mounting options. These components are extensively used in broadcast equipment (TV/radio transmitters), wireless network infrastructure (small cells, repeaters), military communications systems, and industrial automation controls. The BNC7T-J-P-HN-RA-BH1 variant specifically addresses the need for compact, high-density interconnects in modern phased array antenna systems.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 12 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Copper Alloy
Related Products
Amphenol SV Microwave
M39012/56B3119
Linx Technologies Inc.
CONMCX011
Radiall USA, Inc.
R116426000
TE Connectivity Laird
CN58
Amphenol RF
252103
Amphenol SV Microwave
2985-6004
Pasternack
PE45609
RF Industries
RFN-1027-N
Bulgin

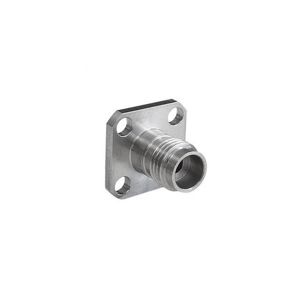

RF240A4JCCCEBF
