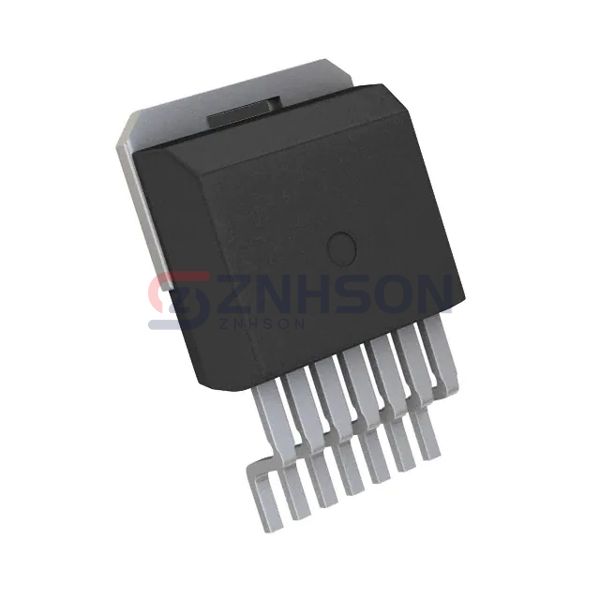

C3M0120090J-TR
Wolfspeed, Inc.
Wolfspeed, Inc.
SICFET N-CH 900V 22A D2PAK-7
$11.80
Available to order
Reference Price (USD)
800+
$6.94400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The C3M0120090J-TR by Wolfspeed, Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the C3M0120090J-TR is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 900 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 15V
- Rds On (Max) @ Id, Vgs: 155mOhm @ 15A, 15V
- Vgs(th) (Max) @ Id: 3.5V @ 3mA
- Gate Charge (Qg) (Max) @ Vgs: 17.3 nC @ 15 V
- Vgs (Max): +18V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 350 pF @ 600 V
- FET Feature: -
- Power Dissipation (Max): 83W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
