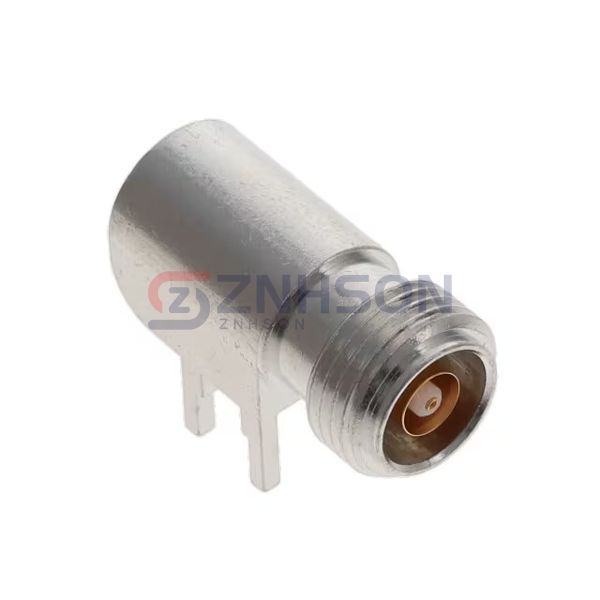

CBJR3157
Cinch Connectivity Solutions Trompeter
Cinch Connectivity Solutions Trompeter
CONN TWIN/TRI TTM JACK R/A PCB
$75.04
Available to order
Reference Price (USD)
10+
$76.25300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Cinch Connectivity Solutions Trompeter's CBJR3157 series elevates Coaxial Connectors (RF) technology with groundbreaking features. These connectors employ hyperbolic contact profiles that ensure consistent electrical performance through extended mating cycles. The product range includes EMI-filtered versions for sensitive electronic environments and high-voltage variants for specialized applications. Notable characteristics: Frequency range from DC to 70GHz Multi-finger beryllium copper contacts Corrosion-resistant stainless steel bodies Customizable keying options. The CBJR3157 is extensively used in: Electronic intelligence systems Particle accelerator components Millimeter-wave imaging arrays Submarine communication systems. Its patented anti-microphonic design makes it particularly suitable for vibration-intensive aerospace applications.
Specifications
- Product Status: Active
- Connector Style: TTM, Twinaxial/Triaxial
- Connector Type: Jack, Female Socket (Concentric)
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: Non-Constant
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 500 MHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
