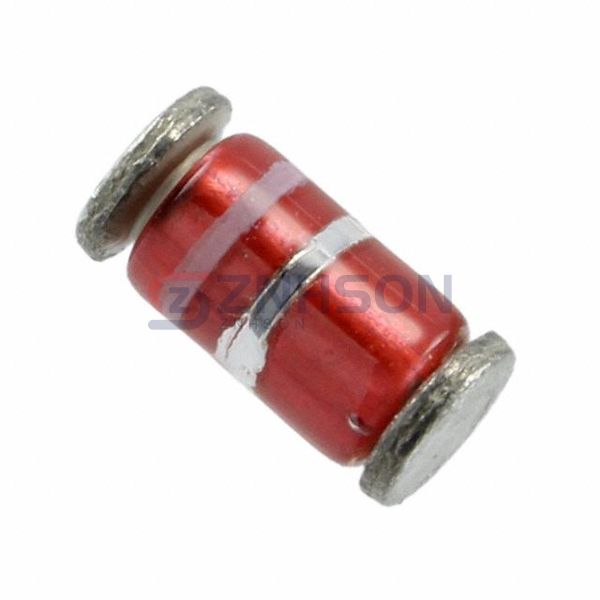

CDLL6760
Microchip Technology
Microchip Technology
DIODE SCHOTTKY 80V 1A DO213AB
$95.62
Available to order
Reference Price (USD)
277+
$3.34848
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the CDLL6760 single rectifier diode from Microchip Technology. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The CDLL6760 is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Microchip Technology's commitment to innovation ensures that the CDLL6760 meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 690 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 100 µA @ 80 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-213AB, MELF
- Supplier Device Package: DO-213AB
- Operating Temperature - Junction: -55°C ~ 125°C
