CI0106M1HR0-NH
Cvilux USA
Cvilux USA
6 POS 2.00MM(.079) SINGLE ROW SM
$0.38
Available to order
Reference Price (USD)
1+
$0.38000
500+
$0.3762
1000+
$0.3724
1500+
$0.3686
2000+
$0.3648
2500+
$0.361
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

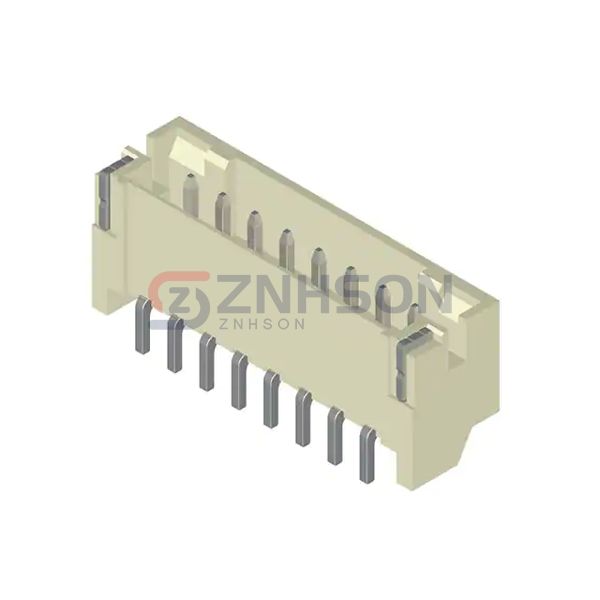

The CI0106M1HR0-NH by Cvilux USA is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Cvilux USA delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.217" (5.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Halogen Free
- Features: Solder Retention
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
BKT-141-04-L-V-A
Molex
0430450401
TE Connectivity AMP Connectors
292253-5
Samtec Inc.
FTR-103-02-G-S

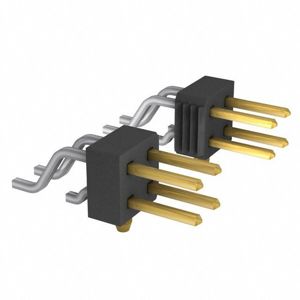

Samtec Inc.
TSM-109-01-L-DH-A-P

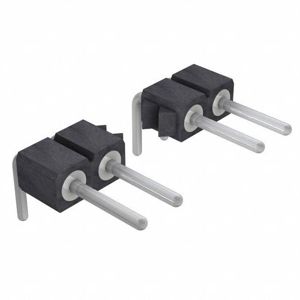

Preci-Dip
800-80-050-20-004101

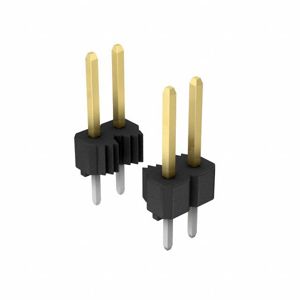

Hirose Electric Co Ltd
A1-10PA-2.54DSA(81)

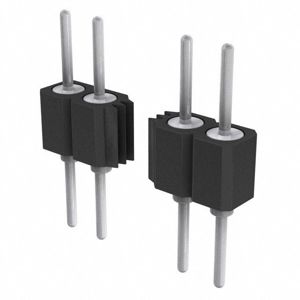

Preci-Dip
830-80-017-10-001101

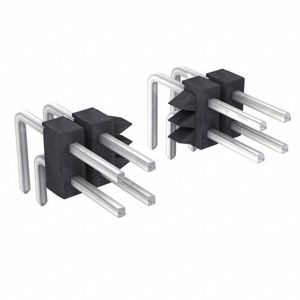

Harwin Inc.
