CP3504P1V00-NH
Cvilux USA
Cvilux USA
4 POS 3.00MM(.118) DUAL ROWS VER
$0.37
Available to order
Reference Price (USD)
1+
$0.37000
500+
$0.3663
1000+
$0.3626
1500+
$0.3589
2000+
$0.3552
2500+
$0.3515
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CP3504P1V00-NH from Cvilux USA is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the CP3504P1V00-NH offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Cvilux USA for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 7A
- Voltage Rating: 600VAC
Related Products
Samtec Inc.
TSM-114-02-L-SH-P
Samtec Inc.
TFC-125-01-F-D
Molex
1722991304
CNC Tech
51025-12-0100-01
Molex
0705430250
Samtec Inc.

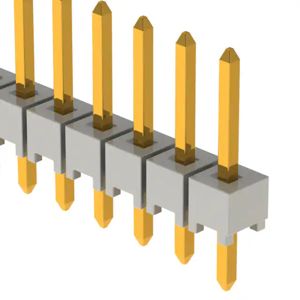

HTSW-135-07-G-S
Samtec Inc.

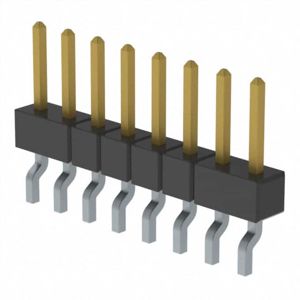

MMT-108-02-F-SH-K
