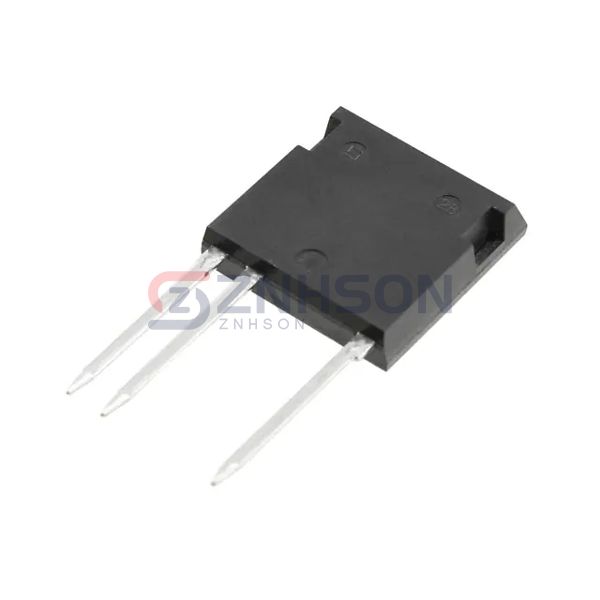

CS20-22MOF1
IXYS
IXYS
SCR 2.2KV I4-PAC
$40.62
Available to order
Reference Price (USD)
1+
$24.52000
10+
$22.68100
25+
$20.84200
100+
$19.37080
250+
$17.77700
500+
$16.91880
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the CS20-22MOF1 SCR by IXYS, a high-reliability component in the Thyristors family of Discrete Semiconductor Products. Its notable features include precise gate control and excellent thermal cycling performance. Widely adopted in traction systems, welding inverters, and power distribution networks, this thyristor demonstrates exceptional versatility. IXYS's CS20-22MOF1 is the smart choice for engineers seeking robust power control solutions.
Specifications
- Product Status: Active
- Voltage - Off State: 2.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 2.3 V
- Current - Gate Trigger (Igt) (Max): 250 mA
- Voltage - On State (Vtm) (Max): 1.5 V
- Current - On State (It (AV)) (Max): 18 A
- Current - On State (It (RMS)) (Max): -
- Current - Hold (Ih) (Max): 150 mA
- Current - Off State (Max): 50 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 200A @ 50Hz
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: i4-Pac™-5 (3 Leads)
- Supplier Device Package: ISOPLUS i4-PAC™
