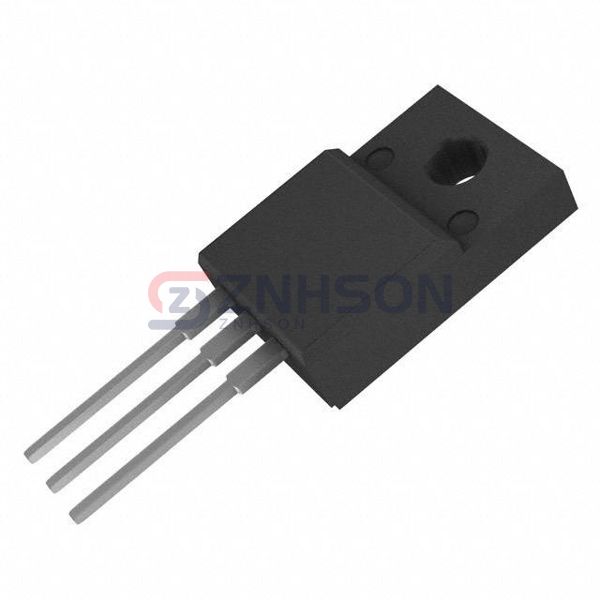

CS22-08IO1M
IXYS
IXYS
SCR 800V 25A TO220
$3.11
Available to order
Reference Price (USD)
1+
$2.76000
10+
$2.49200
50+
$2.22500
100+
$2.00250
250+
$1.78000
500+
$1.55750
1,000+
$1.29050
2,500+
$1.20150
5,000+
$1.15700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the CS22-08IO1M SCR by IXYS, a high-reliability component in the Thyristors family of Discrete Semiconductor Products. Its notable features include precise gate control and excellent thermal cycling performance. Widely adopted in traction systems, welding inverters, and power distribution networks, this thyristor demonstrates exceptional versatility. IXYS's CS22-08IO1M is the smart choice for engineers seeking robust power control solutions.
Specifications
- Product Status: Active
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 1.3 V
- Current - Gate Trigger (Igt) (Max): 30 mA
- Voltage - On State (Vtm) (Max): 1.3 V
- Current - On State (It (AV)) (Max): 16 A
- Current - On State (It (RMS)) (Max): 25 A
- Current - Hold (Ih) (Max): 60 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 300A, 325A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package: TO-220 Isolated Tab
Related Products
Vishay General Semiconductor - Diodes Division
VS-10RIA60
IXYS
CMA30E1600PB
Vishay General Semiconductor - Diodes Division
VS-ST650C20L1
Littelfuse Inc.
SV6016N1QTP
IXYS
CMA50E1600HB
NTE Electronics, Inc
NTE5588
onsemi
2N6401
Littelfuse Inc.
S602TSRP
Solid State Inc.

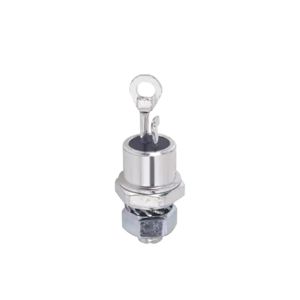

2N684
