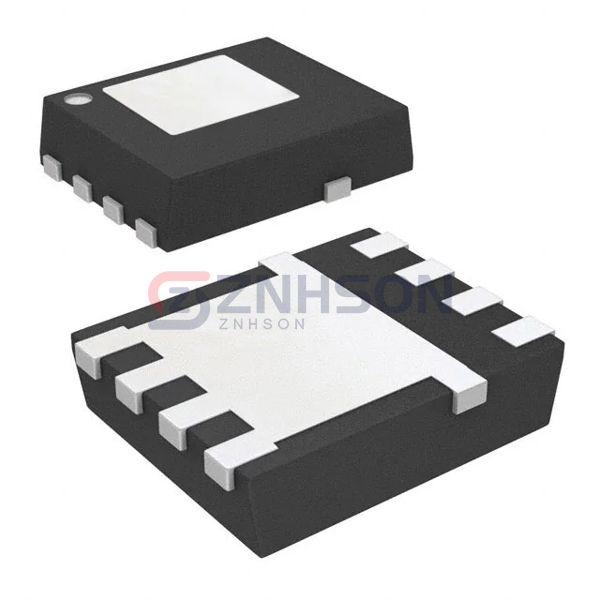

CSD16408Q5C
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 22A/113A 8VSON
$1.61
Available to order
Reference Price (USD)
1+
$1.61000
500+
$1.5939
1000+
$1.5778
1500+
$1.5617
2000+
$1.5456
2500+
$1.5295
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD16408Q5C from Texas Instruments sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Texas Instruments's CSD16408Q5C for their critical applications.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Ta), 113A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 4.5mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 2.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 8.9 nC @ 4.5 V
- Vgs (Max): +16V, -12V
- Input Capacitance (Ciss) (Max) @ Vds: 1300 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
onsemi
2SK4097LS
STMicroelectronics
STI20N65M5
Infineon Technologies
IPP60R060P7XKSA1
Texas Instruments
CSD19506KTT
Fairchild Semiconductor
FQI12N60TU
IXYS
IXTH11P50
Vishay Siliconix
SIHP25N60EFL-GE3
STMicroelectronics
STP5N60M2
Alpha & Omega Semiconductor Inc.

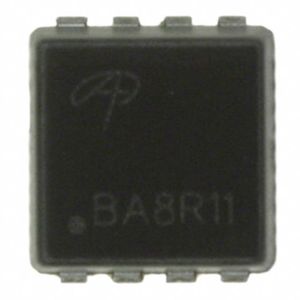

AON6264E
