CSD17307Q5A
Texas Instruments
Texas Instruments
MOSFET N-CH 30V 14A/73A 8VSON
$0.90
Available to order
Reference Price (USD)
2,500+
$0.29700
5,000+
$0.28710
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD17307Q5A by Texas Instruments is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the CSD17307Q5A is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 73A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 10.5mOhm @ 11A, 8V
- Vgs(th) (Max) @ Id: 1.8V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.2 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 700 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 3W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Rectron USA
RM130N200HD
Infineon Technologies
IPP023N10N5AKSA1
Texas Instruments
CSD18532Q5B
Infineon Technologies
BSC019N04LSTATMA1
Rohm Semiconductor

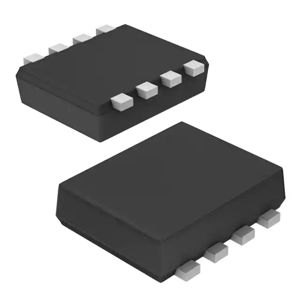

RQ1E100XNTR
IXYS

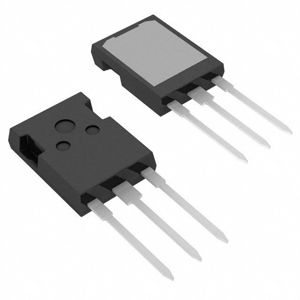

IXTX8N150L
Panjit International Inc.
PJA3401_R1_00001
IXYS

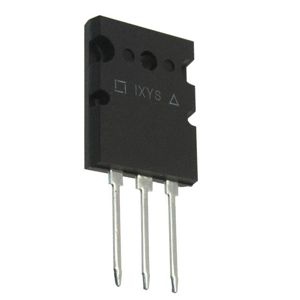

IXFK150N30X3
