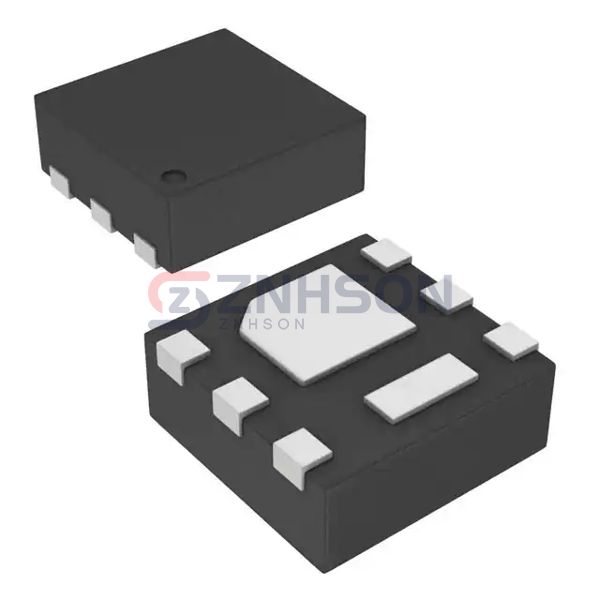

CSD17313Q2
Texas Instruments
Texas Instruments
MOSFET N-CH 30V 5A 6WSON
$0.71
Available to order
Reference Price (USD)
3,000+
$0.20460
6,000+
$0.19140
15,000+
$0.18480
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the CSD17313Q2 by Texas Instruments, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The CSD17313Q2 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Texas Instruments.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 30mOhm @ 4A, 8V
- Vgs(th) (Max) @ Id: 1.8V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 2.7 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 340 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.3W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-WSON (2x2)
- Package / Case: 6-WDFN Exposed Pad
Related Products
STMicroelectronics
STD17NF03LT4
IXYS
IXTP8N70X2

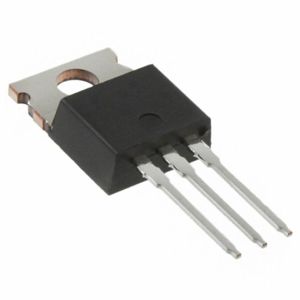

Vishay Siliconix
