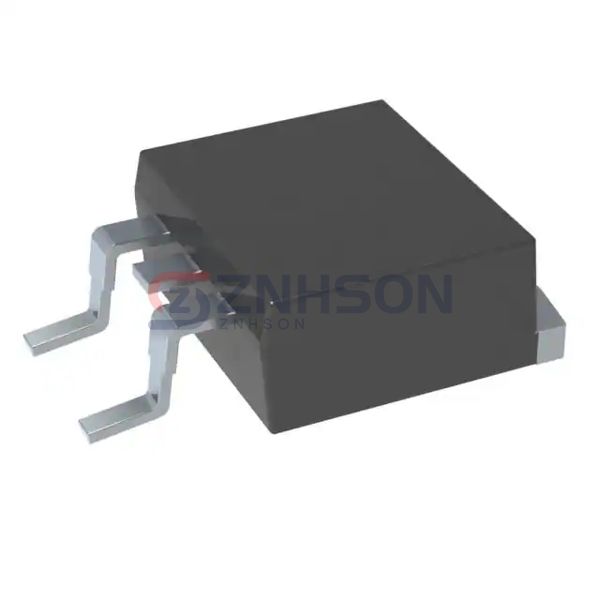

CSD18511KTTT
Texas Instruments
Texas Instruments
MOSFET N-CH 40V 110A/194A DDPAK
$2.11
Available to order
Reference Price (USD)
1+
$2.11000
500+
$2.0889
1000+
$2.0678
1500+
$2.0467
2000+
$2.0256
2500+
$2.0045
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the CSD18511KTTT by Texas Instruments, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the CSD18511KTTT is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 110A (Ta), 194A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.6mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id: 2.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 64 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5940 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 188W (Ta)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DDPAK/TO-263-3
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products
Vishay Siliconix
SIS402DN-T1-GE3
Vishay Siliconix
IRF9620STRLPBF
Alpha & Omega Semiconductor Inc.
AOB600A70FL
IXYS
IXFX300N20X3
IXYS
IXFA24N60X
Nexperia USA Inc.
BUK9Y8R7-60E,115
STMicroelectronics
SCTWA20N120
IXYS

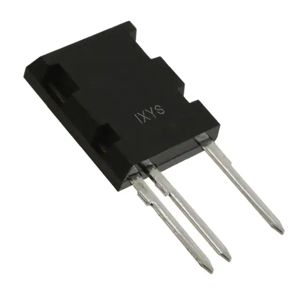

IXTL2N470
