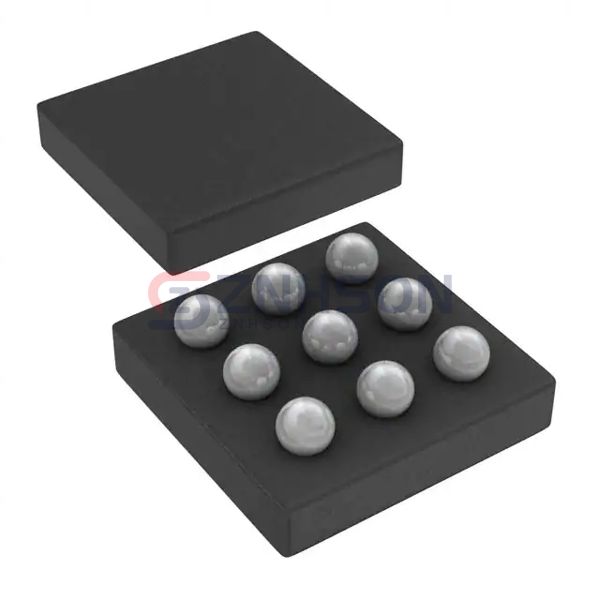

CSD25202W15T
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 4A 9DSBGA
$1.34
Available to order
Reference Price (USD)
1,500+
$0.32340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD25202W15T from Texas Instruments redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the CSD25202W15T offers the precision and reliability you need. Trust Texas Instruments to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 26mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1.05V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.5 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 1010 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 9-DSBGA
- Package / Case: 9-UFBGA, DSBGA
