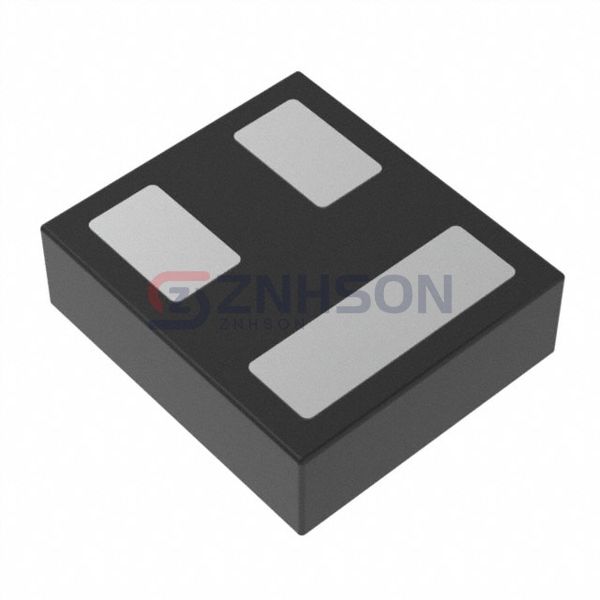

CSD25501F3
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 3.6A 3LGA
$0.10
Available to order
Reference Price (USD)
1+
$0.10472
500+
$0.1036728
1000+
$0.1026256
1500+
$0.1015784
2000+
$0.1005312
2500+
$0.099484
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the CSD25501F3 by Texas Instruments, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The CSD25501F3 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Texas Instruments.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 76mOhm @ 400mA, 4.5V
- Vgs(th) (Max) @ Id: 1.05V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1.33 nC @ 4.5 V
- Vgs (Max): -20V
- Input Capacitance (Ciss) (Max) @ Vds: 385 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-LGA (0.73x0.64)
- Package / Case: 3-XFLGA
Related Products
onsemi
FQPF7N65C
STMicroelectronics
STP20N65M5
Toshiba Semiconductor and Storage
TK6A65W,S5X
Vishay Siliconix
SIHA120N60E-GE3
onsemi
NTK3043NT5G
onsemi
FDMC86570L
Vishay Siliconix
SI4874BDY-T1-E3
Infineon Technologies
IPP100N06S205AKSA1
Rohm Semiconductor

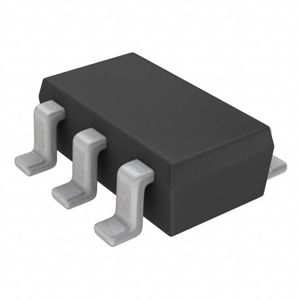

RVQ040N05TR

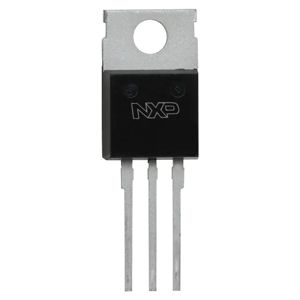

NXP USA Inc.
