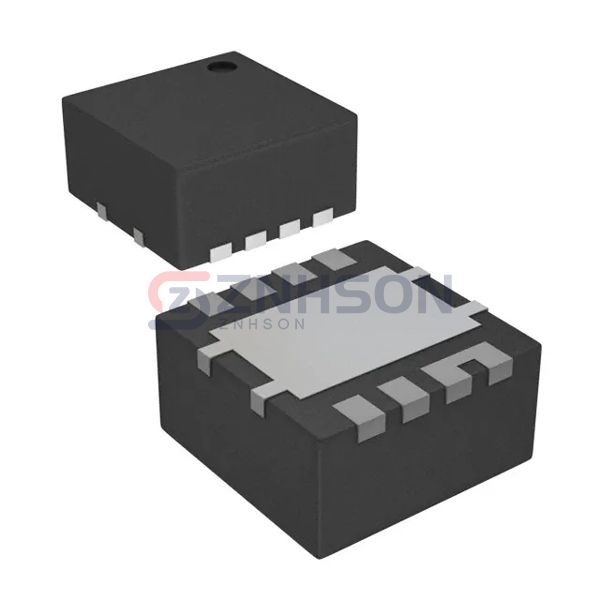

CSD86336Q3D
Texas Instruments
Texas Instruments
25V POWERBLOCK N CH MOSFET
$0.83
Available to order
Reference Price (USD)
2,500+
$0.73360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD86336Q3D by Texas Instruments is a high-performance component within the Discrete Semiconductor Products category. Designed as part of the Transistors - FETs, MOSFETs - Arrays series, it offers exceptional durability and efficiency for power-sensitive applications. From medical equipment to aerospace technology, the CSD86336Q3D provides reliable operation under stringent conditions. Texas Instruments's innovative approach ensures this MOSFET array meets the needs of modern electronics.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Half Bridge)
- FET Feature: Logic Level Gate, 5V Drive
- Drain to Source Voltage (Vdss): 25V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
- Rds On (Max) @ Id, Vgs: 9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V
- Vgs(th) (Max) @ Id: 1.9V @ 250µA, 1.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.8nC @ 45V, 7.4nC @ 45V
- Input Capacitance (Ciss) (Max) @ Vds: 494pF @ 12.5V, 970pF @ 12.5V
- Power - Max: 6W
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: 8-VSON (3.3x3.3)
