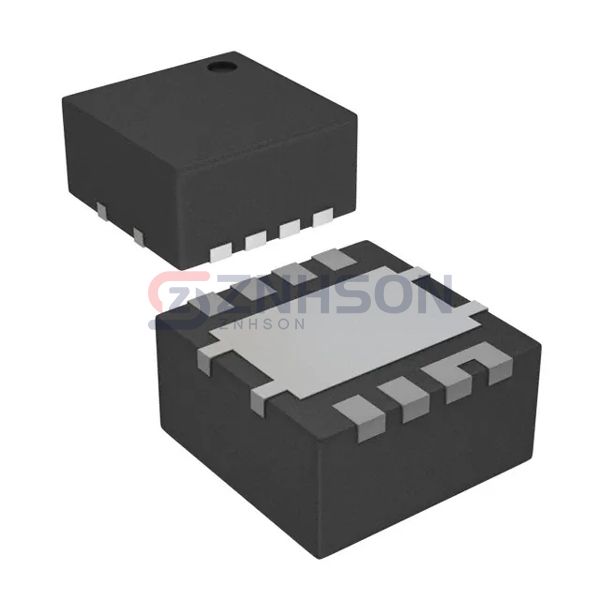

CSD86336Q3DT
Texas Instruments
Texas Instruments
SYNCHRONOUS BUCK NEXFET POWER BL
$2.01
Available to order
Reference Price (USD)
1+
$2.01000
500+
$1.9899
1000+
$1.9698
1500+
$1.9497
2000+
$1.9296
2500+
$1.9095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD86336Q3DT from Texas Instruments is a versatile and high-efficiency component in the Discrete Semiconductor Products lineup. As part of the Transistors - FETs, MOSFETs - Arrays family, it offers excellent thermal stability and low gate charge, making it ideal for high-power applications. From renewable energy systems to telecommunications infrastructure, the CSD86336Q3DT provides reliable performance in demanding environments. Choose Texas Instruments for innovative semiconductor solutions that drive technological advancement.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Half Bridge)
- FET Feature: Logic Level Gate, 5V Drive
- Drain to Source Voltage (Vdss): 25V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta)
- Rds On (Max) @ Id, Vgs: 9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V
- Vgs(th) (Max) @ Id: 1.9V @ 250µA, 1.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.8nC @ 45V, 7.4nC @ 45V
- Input Capacitance (Ciss) (Max) @ Vds: 494pF @ 12.5V, 970pF @ 12.5V
- Power - Max: 6W
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: 8-VSON (3.3x3.3)
