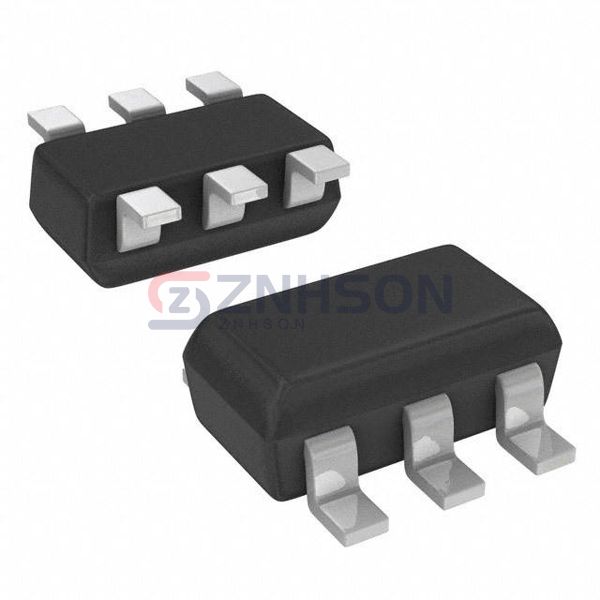

DCX123JK-7-F
Diodes Incorporated
Diodes Incorporated
TRANS NPN/PNP PREBIAS 0.3W SC74R
$0.08
Available to order
Reference Price (USD)
3,000+
$0.08280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DCX123JK-7-F from Diodes Incorporated is a high-performance Bipolar Junction Transistor (BJT) Array designed for precision applications. This pre-biased transistor array integrates multiple BJTs in a compact package, offering excellent thermal stability and consistent performance. Ideal for amplification and switching circuits, the DCX123JK-7-F ensures low noise and high gain, making it a reliable choice for industrial and consumer electronics. Common applications include motor control, LED drivers, and audio amplifiers. With robust construction and advanced manufacturing techniques, Diodes Incorporated's DCX123JK-7-F delivers unmatched reliability in demanding environments.
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 2.2kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 300mW
- Mounting Type: Surface Mount
- Package / Case: SC-74, SOT-457
- Supplier Device Package: SC-74R
