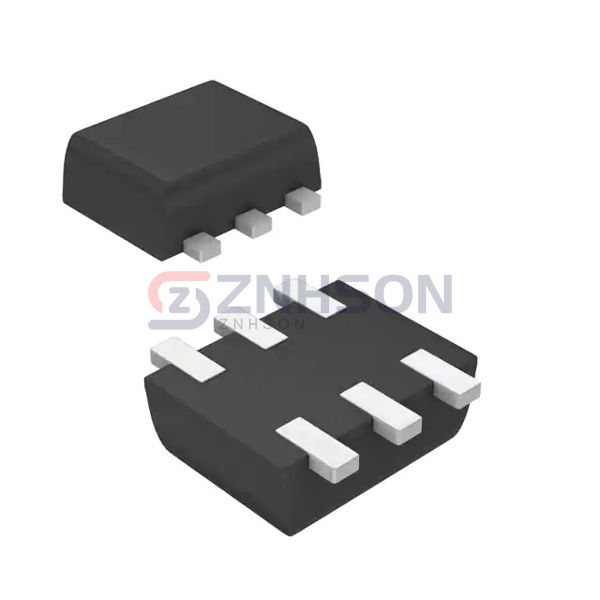

DCX143EH-7
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN/PNP SOT563
$0.10
Available to order
Reference Price (USD)
3,000+
$0.10450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with Diodes Incorporated's DCX143EH-7, a high-reliability pre-biased BJT array. This discrete semiconductor solution offers matched transistor pairs with integrated bias networks, ensuring optimal performance in amplification and switching tasks. The DCX143EH-7 is perfect for use in audio equipment, power supplies, and automotive control systems. With Diodes Incorporated's rigorous quality control, each array provides long-term stability and minimal distortion. Compact, efficient, and easy to integrate, the DCX143EH-7 is the go-to choice for engineers seeking dependable transistor solutions.
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms
- Resistor - Emitter Base (R2): 4.7kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
