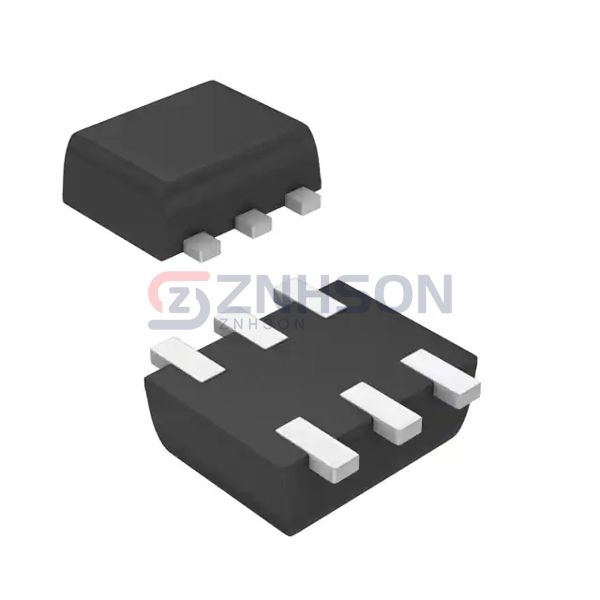

DDC143EH-7
Diodes Incorporated
Diodes Incorporated
TRANS 2NPN PREBIAS 0.15W SOT563
$0.10
Available to order
Reference Price (USD)
3,000+
$0.10450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with Diodes Incorporated's DDC143EH-7, a pre-biased BJT array built for precision and efficiency. This transistor array simplifies circuit layout by incorporating bias resistors within the package, reducing assembly time and cost. The DDC143EH-7 is widely used in lighting systems, portable electronics, and automotive accessories. Diodes Incorporated's innovative approach ensures high yield and consistent quality across all production batches. With excellent thermal management and low power consumption, the DDC143EH-7 is a smart choice for energy-sensitive applications.
Specifications
- Product Status: Active
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms
- Resistor - Emitter Base (R2): 4.7kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
