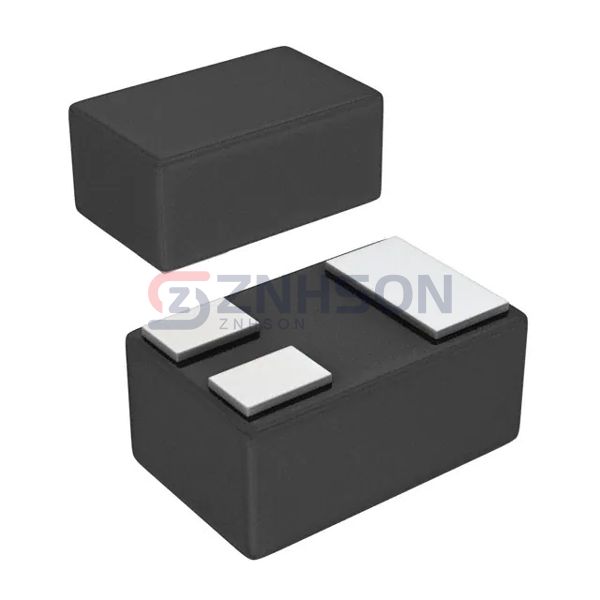

DDTC143ZLP-7
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN 250MW 3DFN
$0.13
Available to order
Reference Price (USD)
3,000+
$0.13528
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layout with Diodes Incorporated's space-saving DDTC143ZLP-7. This pre-configured bipolar transistor eliminates external biasing components while delivering 250mW power dissipation. Applications span from smart home appliances to automotive lighting systems. Diodes Incorporated combines 20+ years of semiconductor expertise with cutting-edge silicon technology in this robust solution.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 180 @ 50mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 200mV @ 5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250 MHz
- Power - Max: 250 mW
- Mounting Type: Surface Mount
- Package / Case: 3-UFDFN
- Supplier Device Package: X1-DFN1006-3
