DDTD113ZU-7-F
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN 200MW SOT323
$0.06
Available to order
Reference Price (USD)
3,000+
$0.06276
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layout with Diodes Incorporated's space-saving DDTD113ZU-7-F. This pre-configured bipolar transistor eliminates external biasing components while delivering 250mW power dissipation. Applications span from smart home appliances to automotive lighting systems. Diodes Incorporated combines 20+ years of semiconductor expertise with cutting-edge silicon technology in this robust solution.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 500 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 1 kOhms
- Resistor - Emitter Base (R2): 10 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 56 @ 50mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 2.5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 200 MHz
- Power - Max: 200 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
Related Products
Rohm Semiconductor
DTA044EEBTL
onsemi
MUN5233T1G
Nexperia USA Inc.
PDTC144EQAZ
Diodes Incorporated
DDTC143EUA-7
Toshiba Semiconductor and Storage
RN1102,LXHF(CT
Toshiba Semiconductor and Storage
RN1411,LXHF
Toshiba Semiconductor and Storage
RN1313,LXHF
Panasonic Electronic Components
UNR5214G0L

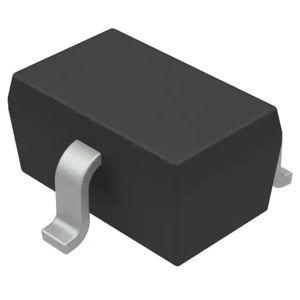

Nexperia USA Inc.
