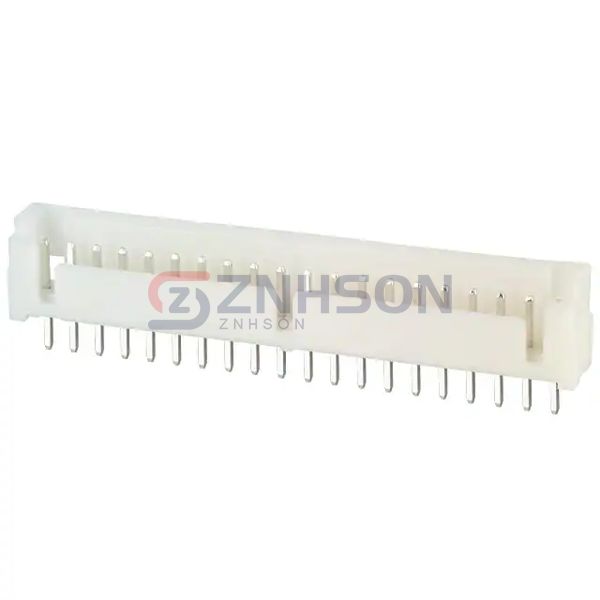

DF1BZ-20P-2.5DSA
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 20POS 2.5MM
$0.88
Available to order
Reference Price (USD)
1+
$0.75000
10+
$0.66300
100+
$0.57200
500+
$0.46800
1,000+
$0.41600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the DF1BZ-20P-2.5DSA rectangular connector header from Hirose Electric Co Ltd, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the DF1BZ-20P-2.5DSA adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Hirose Electric Co Ltd guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: 0.417" (10.60mm)
- Insulation Height: 0.374" (9.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Keying Slot
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
Preci-Dip
850-10-009-40-251191
TE Connectivity AMP Connectors
9-146254-0-09
Molex
0535170410
Sullins Connector Solutions
PREC026DBAN-M71RC
Molex
1722861208
Molex
2125201002
Molex
0440680090
Samtec Inc.

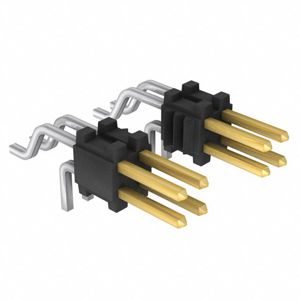

FTSH-110-02-L-MT
