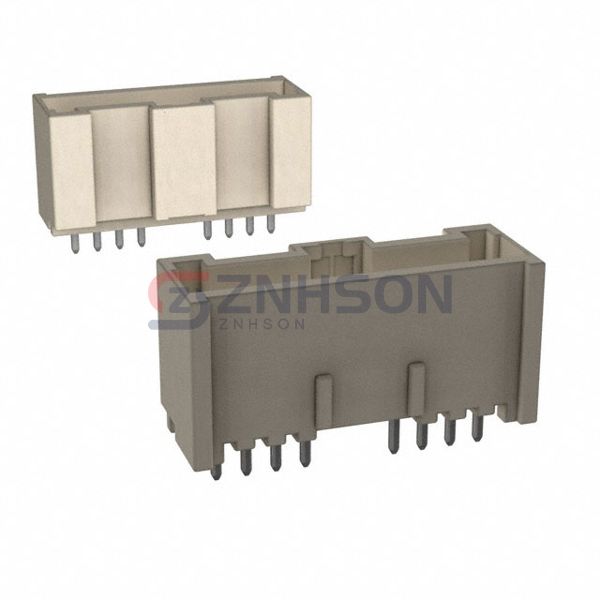

DF1EC-8P-2.5DSA(36)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 8POS 2.5MM
$1.15
Available to order
Reference Price (USD)
100+
$0.96800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the DF1EC-8P-2.5DSA(36) rectangular connector header from Hirose Electric Co Ltd. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the DF1EC-8P-2.5DSA(36) meets the highest industry standards. Hirose Electric Co Ltd provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.425" (10.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: -
