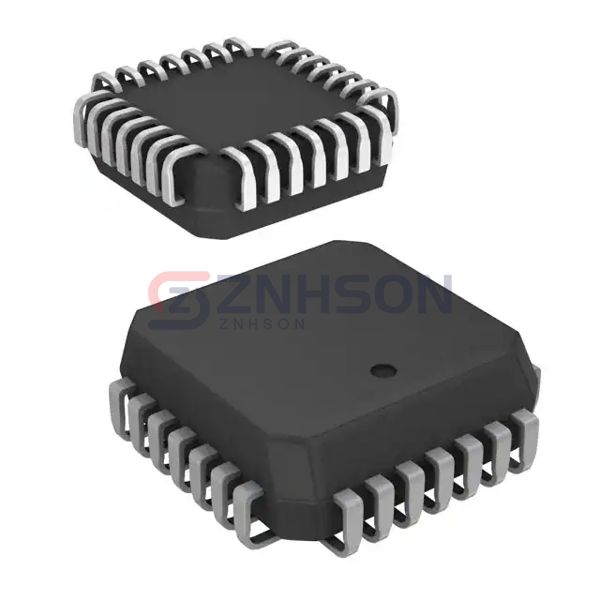

DG406DN-T1-E3
Vishay Siliconix
Vishay Siliconix
IC MULTIPLEXER 16X1 28PLCC
$9.22
Available to order
Reference Price (USD)
500+
$4.47796
1,000+
$3.90015
2,500+
$3.75570
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical switching applications, the DG406DN-T1-E3 by Vishay Siliconix delivers unmatched reliability in our Analog Interface ICs portfolio. Its monolithic CMOS construction provides <5pF channel capacitance and rail-to-rail signal handling capability. The DG406DN-T1-E3 excels in aerospace telemetry systems, downhole drilling instrumentation, and renewable energy inverters where vibration resistance and long-term stability are paramount. Unique features include: power-off protection (signals pass when unpowered), TTL/CMOS compatible control inputs, and daisy-chain capability for channel expansion. Sample applications include: multi-zone HVAC controls, spectrometer detector arrays, and autonomous vehicle LIDAR subsystems.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 100Ohm
- Channel-to-Channel Matching (ΔRon): 5Ohm
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±5V ~ 20V
- Switch Time (Ton, Toff) (Max): 200ns, 150ns
- -3db Bandwidth: -
- Charge Injection: 15pC
- Channel Capacitance (CS(off), CD(off)): 8pF, 130pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-LCC (J-Lead)
- Supplier Device Package: 28-PLCC (11.51x11.51)
Related Products
Analog Devices Inc./Maxim Integrated
MAX4592EUE
Analog Devices Inc.
ADG774BR
Nexperia USA Inc.
74HC4851D-Q100,118
Nexperia USA Inc.
74HCT4067PW,118
Analog Devices Inc./Maxim Integrated

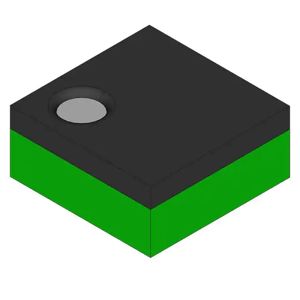

MAX4733EBL-T
